5004913
Bombardier
Learjet 35, 36, and 31
Overview
The 5004913 is a main wheel assembly used on Bombardier Learjet 35, 36, and 31. Manufactured by Meggitt Aircraft.
Maintenance Schedule
Penetrant Inspection → Overhaul
Per CMM: Per CMM, any wheel requiring penetrant inspection is processed as an overhaul. Owners may elect overhaul at any tire change to extend service life.
Standard Tire Change Scope
Every tire change replaces the tire, the main wheel-half preformed packing (O-ring), the valve cap, and the valve core. Specific part numbers and dash sizes vary by wheel and are pulled from the CMM at the time of service.
Inspection Criteria
GeneralGeneral overhaul criteria — see the CMM for full specifications and numeric limits:
- Drive keys: replace if damaged, corroded, or loose.
- Heat shield: replace if cracked, burned, or mechanically damaged.
- Bolts and nuts: replace if cracked, corroded, thread-damaged, or failing the back-off torque test.
- Bearings (cones and cups): replace if spalled, discolored from heat, pitted, or showing any surface wear.
- Wheel halves: replace if cracked, out-of-round beyond CMM limits, or showing seal-groove damage.
- Preformed packings and O-rings: replace at every disassembly.
- Retaining rings and lockwire: replace whenever removed.
Service Pricing
Pricing reflects labor only. Parts, shop supplies, and freight are billed as incurred.
Tire Change Turnaround
- Standard48 hoursNo surcharge
- Expedited24 hours+$200 per wheel
- AOGSame-day (2–3 hours)+$400 per wheelRetention check waived to meet same-day release.
Overhaul Turnaround
- Standard10 business daysNo surcharge
- Expedited3–5 business days+$200 per wheel
Compatible Tires

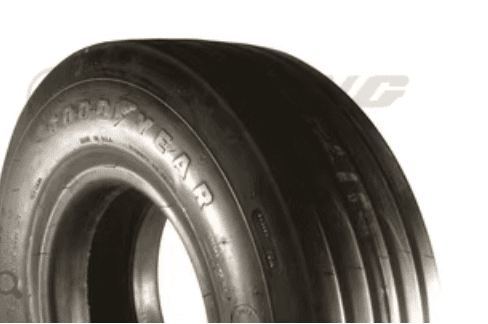

Tire Goodyear Tire & Rubber® Tl Flight Eagle® 210 MPH 14 Ply Aircraft Tire 301-321-870 17.5 X 5.75-8 178K43-1. Available from AeroParts Southwest, FAA-certified repair station.
178K23-5 aircraft tire for Bombardier aircraft wheel assemblies. Available from AeroParts Southwest, FAA-certified repair station.
